YALE Digital/Smart Door Locks

YALE YDG 313 DIGITAL RIM LOCKS FOR GLASS DOOR

Smarter Solution for your home High tech Proximity card Digital Door Lock with strong features

Features & Benefits:

• Various Access :
1. PIN Code - 1 pin code (6-12 digits)
2. RF Card Key - can register upto 40 cards
3. Remote with Receiver (OPTIONAL)- Remote control type is also available. Wireless floating ID Technology is adopted and works up to 50M.

• Magic Mirror
a magical mirror function is applied, which the keypad number appears on the mirror as soon as a user touched the product. The user can check the rear through the magic mirror, so that security can be enhanced.

• Safe Thumb-Turn
only if a user pushes the two safe buttons simultaneously affixed to the thumb-turn knob, the user can turn the thumb-turn knob. Its security is higher as compared to a normal knob.

• Clip Type Bracket
the installation convenience is improved by the clip-type bracket with a very strong double-side tape. Can be installed on Glass Doors of 9-13mm thickness.

• High Temperature Alarm
in case of panic situation like fire, it detects the inside temperature and raises an alarm. It also detects the dead-bolt for easy exit.

• Fake PIN Code
to prevent the PIN code from being exposed, it allows you to enter fake numbers before or after entering the you PIN code

• Advanced Mode
glass digital door lock offers higher security under advanced mode. Master code required for all programming.

• Visitor Code
(Unique one-time visitor code which lapses after single operation)

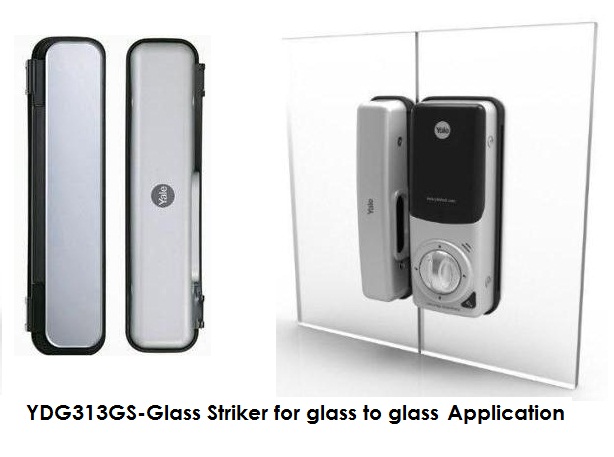

• Glass Striker
for glass to glass frameless door application - If the glass door is Adjacent with another glass door/wall

• Clearance of Glass should 5mm


Technical details:
• Pin Code: 4-12 digits
• Color: Mirror Finish
• Front Body Dimension: 36(D) x 72(W) x 185(H) mm
• Back Body Dimension: 13(D) x 66(W) x 179(H) mm

Specifications:
• Type: rim lock
• Door thickness: 9 to 13mm
• Door Gap: 5mm
• 4x AA batteries
• Automatic lock mode
• Suitable for left or right opening
