YALE Cabinet Hinges

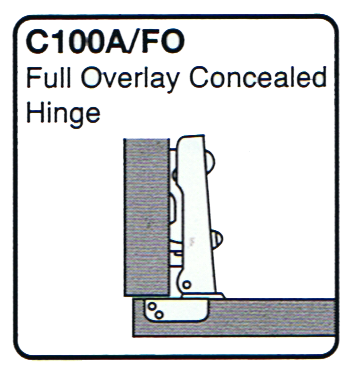

YALE C100A/FO SELF CLOSING CONCEALED HINGE - FULL OVERLAY

FEATURES:
• 3 Hinges styles to fit for different door structures
• Fully concealed flush looking appearance
• Soft closing, Snap-On design and cam adjustable
• Hinge 100 degree with integrated damper
• Adjustable in 3 directions (1mm)
• -Up and down
• -Left and right
• -In and out


SPECIFICATIONS:
• Opening angle: 100 degree
• Depth of hinge cup: 10mm
• Diameter of Hinge cup: 35mm
• Range of door thickness: 14-24mm
• Possible drilling distance on the door: 3-7mm
