YALE Lever Set

Yale L5340 Series Medium Duty Tubular Lever Set

SPECIFICATIONS:
• Standard: ANSI / BHMA A 156.2.2003
• Testing Cycles: Tested up to 200,000 cycles

• Materials:
- Chassis: Steel
- Latch and Bolt: Zinc
- Strike: Steel
- Knob: Zinc
- Rose: Brass
• Backset: 60mm / 70mm
• Door Thickness: 35-50mm
• Function: Residential and light commercial applications
• Cylinder: Solid Brass 5-pin tumbler cylinder
• No. of Keys: 3 pcs of nickel plated brass key
• Master key: available upon request (w/ extra charge)

Finish Available:
• US5- Antique Brass
• US15- Satin Chrome

Product code:
• VL5347 Entrance / bedroom Function with key

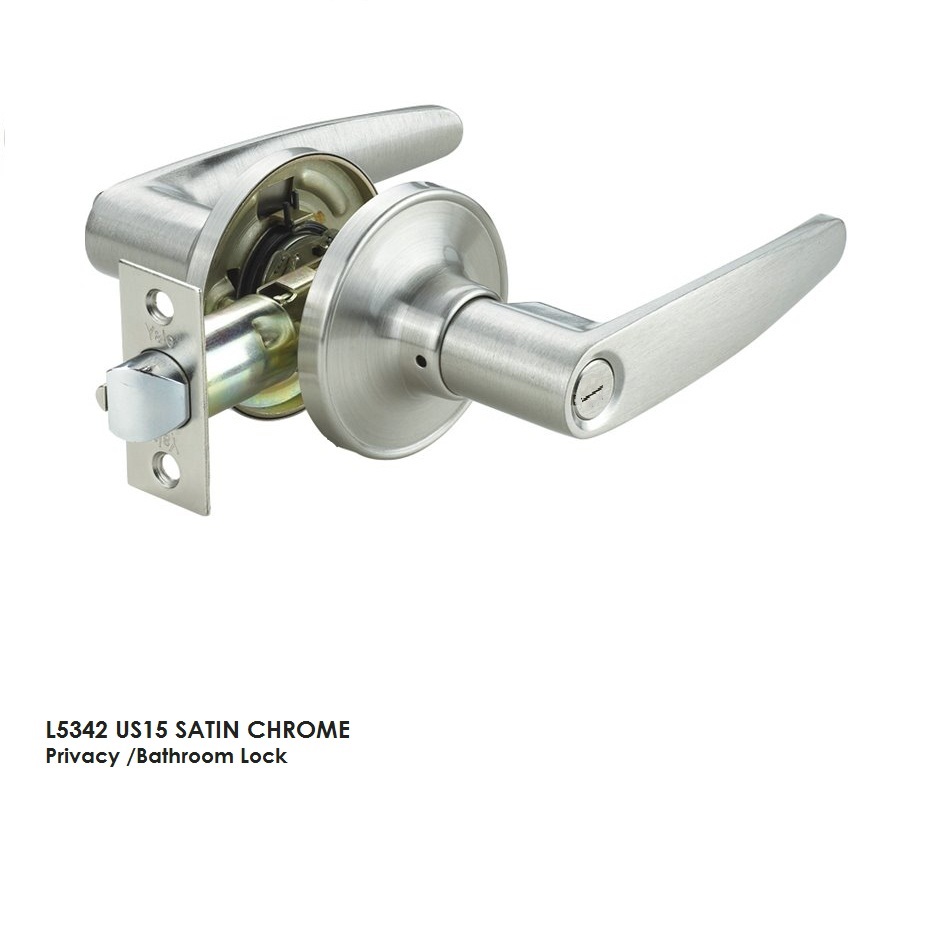

• VL5342 Bathroom / Privacy Function without key
