YALE Digital/Smart Door Locks

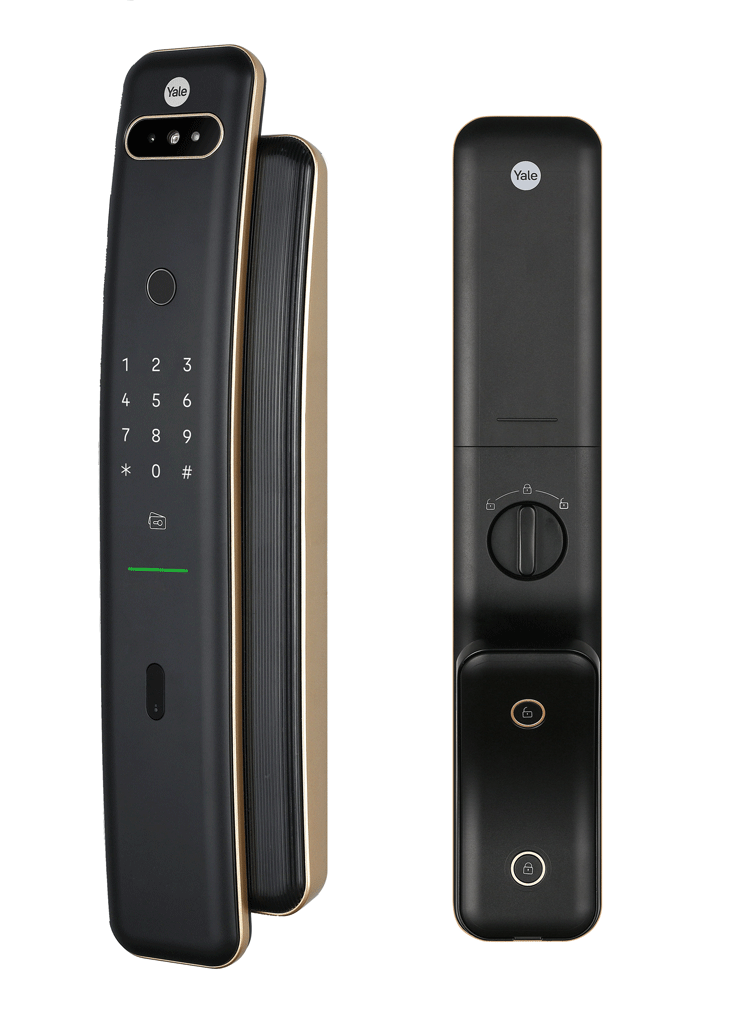

YALE LUNA PRO+ FACIAL RECOGNITION PUSH & PULL MORTISE TYPE DOOR LOCK with RECHARGEABLE LITHIUM BATTERY

Keyless to Coolest, Your Face, Your Key. Ever imagine not carrying any keys with you?
It is indeed convenient without having to worry about losing the keys anymore. But is keyless the best solution you can ever have for you and your family? Meet our latest innovation, the Yale FaceScan powered by 3D structured light, to enhance the security of your entrance.

FEATURES:
Face Recognition: up to 100 users
Fingerprint: up to 50 users
PIN Code: up to 100 users
RFID Key tag: up to 100 users
Remote Control: Optional (sold separately)
Mechanical Key Override: 2pcs available
Color: Matte Black with
Champagne Gold Trimming
Front Body: 103mm (W) x 424mm (H) x 49mm (D)
Main Body: 66mm (W) x 320mm (H) x 31mm (D)
Backset: 60/70mm
Battery: Lithium Ion Battery

SPECIFICATIONS:

Dimension:
Front Escutcheon size
420mm X 104mm X 48.5mm
Back Escutcheon size
420mm X 76mm X 60mm

Color: Matte Black with
Champagne Gold Trimming

Credentials: FaceScan, Fingerprint, PIN Code,
IC Card, Mechanical Keys

Materials:
Front Escutcheon - Zinc Alloy
Back Escutcheon - Zinc Alloy
Lockcase – Stainless Steel

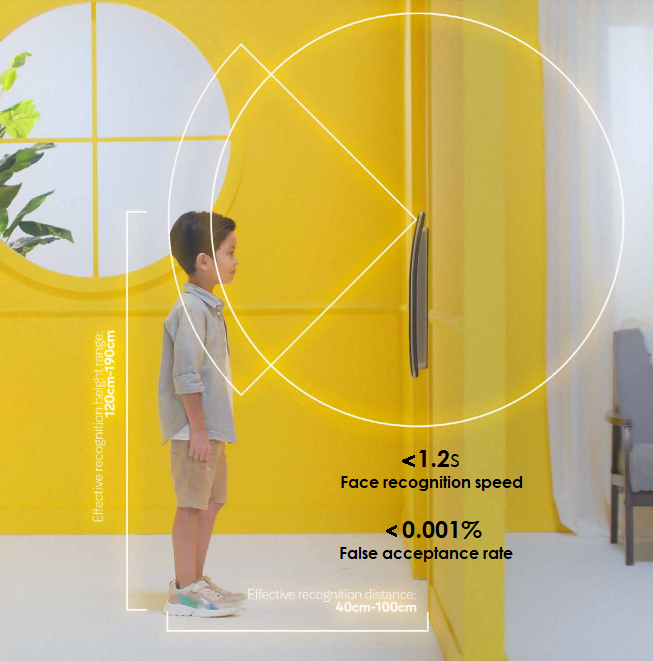

Facial Recognition:
3D Structured Light Technology
100 Capacity
Less than 0.0001% (@ TAR 98%) FAR
120-190cm Spoofing Detection
40-100cm Detectable Height
BCTC Dual Certification

Fingerprint:
Capacitive Technology
50 Capacity
500dpi Resolution
Less than 0.001% FAR

IC Card:
CPU card FM 1208-09/10 IC card Type (M1 Card optional)
100 Capacity

PIN Codes:
6-10 Digits Pin Length
100 Capacity
Scramble Pin - Yes

Lockcase: EN Lockcase,
available with 70 & 60mm Backset

Cylinder: China GA/T 73-2015 Class C

Power:
500mAh Lithium Ion Battery Pack
Type C Charging Back-up

Working Temperature: -25°C to 60°C
Working Relative Humidity: 0-93%
No Condensation
Standard: China GA374-2019 Class B
Suitable Door Type: Wooden, Steel Door with Door Thickness of 35-110mm
Smart Connectivity: Yale Access
