YALE Digital/Smart Door Locks

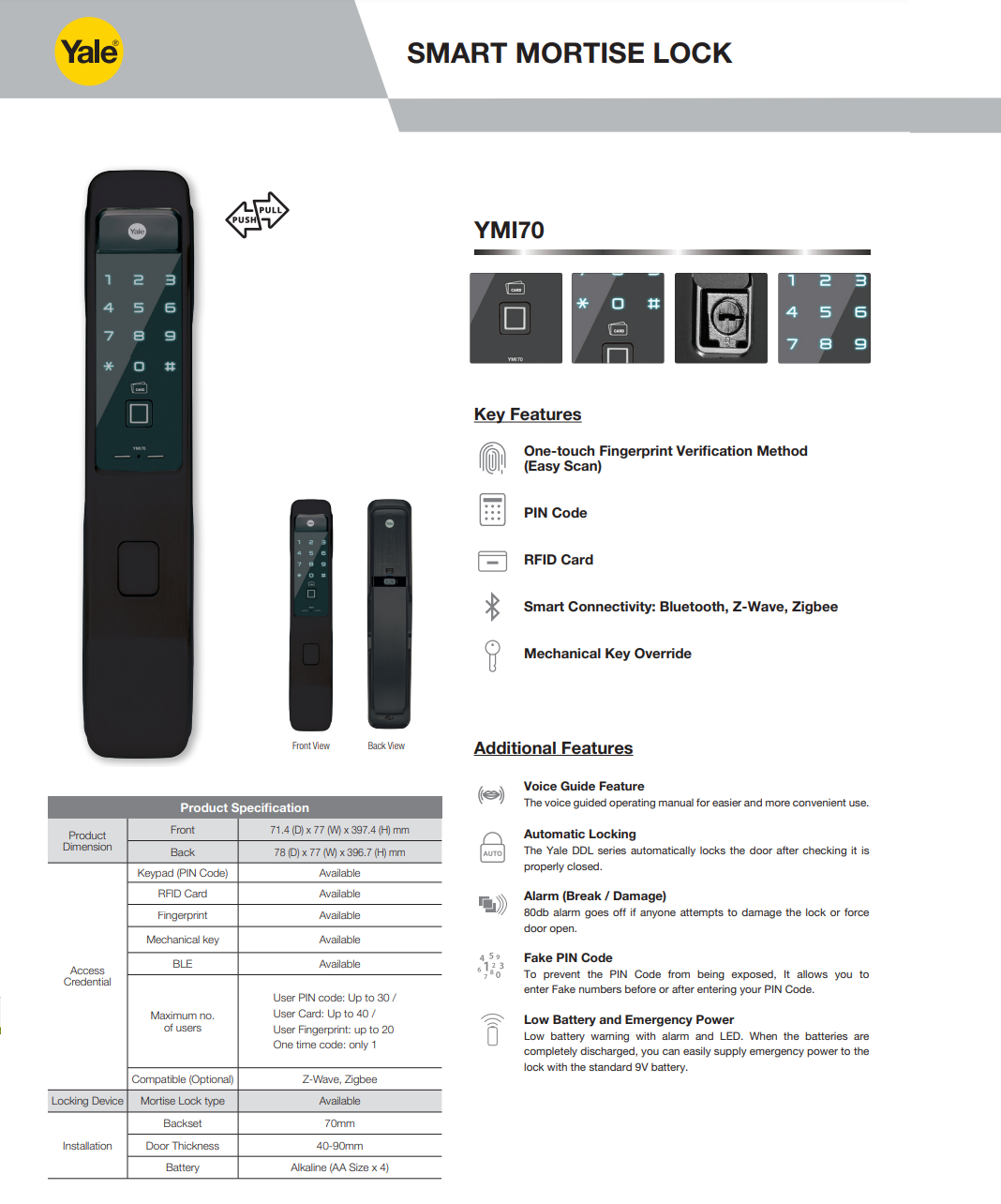

YALE YMI70 PUSH & PULL DIGITAL MORTISE MULTI ACCESS LOCK

FEAUTURES :

• Various Access Modes
- Finger print (Up to 40 Fingerprint Users)
- Pin Code 4-10 Digits (Up to 30 Different Pin Codes)
- RF ID FOB 4pcs included (Upto 40 RF Fob/card can be registered)
- Bluetooth Access
- Remote Control (optional) within 8mt range without barrier, 5mt range with barrier
- Key Override (2pcs)

• Easy PUSH and PULL Handle
• Door Access Event Log on mobile
• Built-in Bluetooth for Unlocking
• In & Out Push Message Alert
• Status Notification Feature
• Manner Mode for Quiet Night Outings
• PIN to Admin to Enroll and Delete
• Biotech Optical Finger Print
• Latest Concept Design
• Unique User Welcome Feature
• Touch Screen Keypad
• Invasion Alarm Feature
• Automatic Locking Mechanism
• Emergency External Battery Terminal in Case of low battery

SPECIFICATION
• Model: YMI70
• Color: Midnight Black / Oriental Bronze / Red Gold
• Entry Options: Fingerprints, PIN Code, Key Cards, Mechanical Keys and Bluetooth
• Backset: 70mm
• Door Thickness: 40-80mm
• Temperature: -15 ~ 55°C
• Battery :4 X AA Alkaline Battery
• Size (Front) : 71.4 (D) x 77 (W) x 397.4 (H) mm
• Size (Back) : 78 (D) x 77 (W) x 396.7(H) mm
