YALE Digital Door Locks

YALE G-SLIDE MULTI ACCESS DIGITAL RIM LOCK

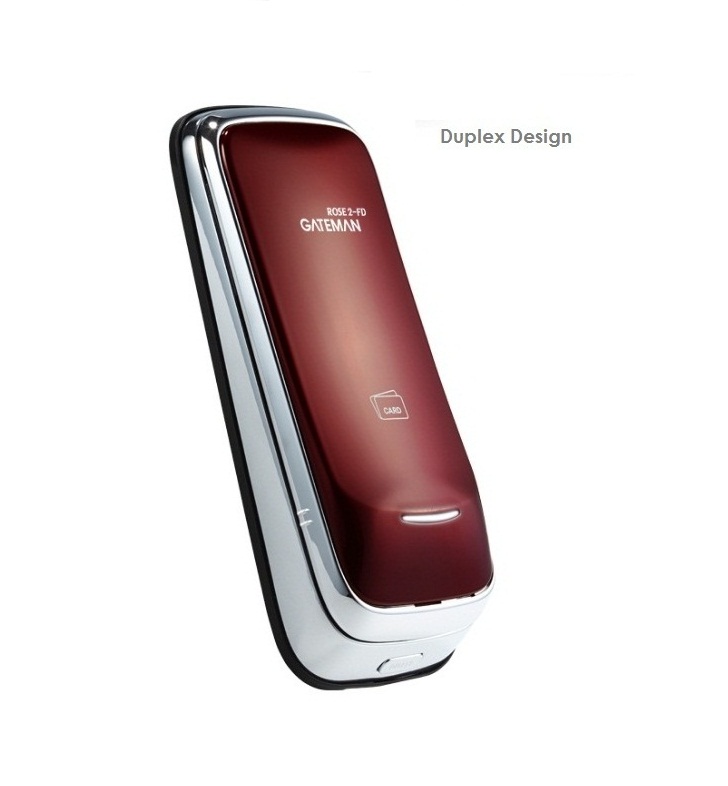

The Yale Rose 2 is a modern beautiful interpretation of a retro design. The curves finish and color combines into such an alluring artwork that begs for a second look. It is not just a pretty lock but the build quality is exemplary.
With pin and card access feature, it delivers consistently; it always works.

Various Accesses:
• Pin number access
- Up to 30 pin numbers in Master Mode (4-12digits)
• RFID card Access
- 4 pcs. RFID FOB included. Can also register up to 40 RFID FOB/ Cards
• remote controller (up to 8mt without barrier/ 5mt with barrier) - optional

Features:
• powered by 4x AA alkaline batteries
• Low battery indicators
• 9V external battery terminal for emergency access
• Master Mode
- Discrete user management
- Master Pin (required for changes in lock settings)
• One time use pin code

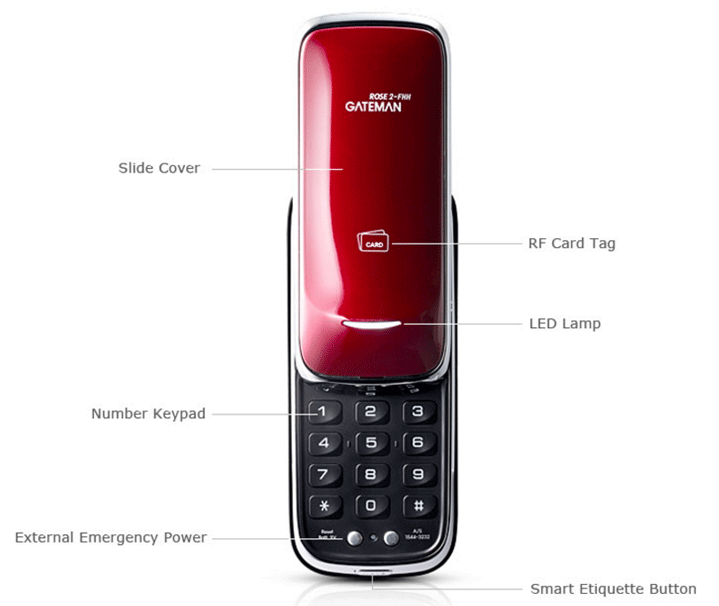

• Sliding cover allows a small footprint and keeps dust off
• Pin and card access
• Automatic and manual lock mode
• Inside Forced Lock (Double Lock)
• Extra secure
- vertical extra strong bolt
- double action open button
• Made in Korea (Korean word labels)

Product Specification
•Front Body : 61.2 (W) X 144.7 (H) X 31.7 (D) mm
•Back Body : 72 (W) X 185 (H) X 36 (D) mm
•Backset : 60 mm
•Door Thickness: 35 - 55 mm
•Suitable : Wooden & Metal-For metal doors, please request site inspection first.
•Finishes : Red Rose
