YALE Digital/Smart Door Locks

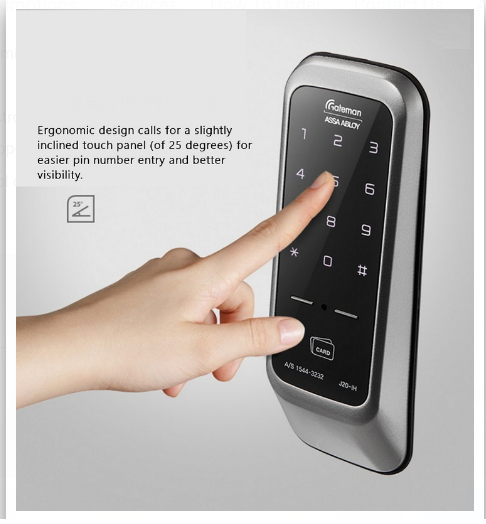

YALE J20A MULTI ACCESS DIGITAL RIM LOCK

The Yale J20+ is a great value digital lock with rock-solid construction. While it does not have the slim front body of other Digital Rim Lock, it has the rest of the features that comes with the higher end models. Go with this model if you want to save a little more without compromising on build quality.

Various Accesses:

1. Pin number access
• User code (4-10digits) - Up to 30 pin code can register
• One time use pin code (4 digits) - this code automatically deletes after you use it.
• Visitor code (4 digits) - whenever you have guest/s, you can register a code just for them. Once the guest uses the code it will be automatically deleted and cannot use it again to re-enter.

2. RFID card Access
• 4 pcs. RFID cards included (can register up to 40 cards)

3. Mobile Access Capable via Bluetooth (optional- Bluetooth Module Sold separately) - Can be opened thru your mobile Bluetooth application. Maximum of 8 meter away no barriers, 5mts with barrier

4. Remote with Receiver (optional-sold separately): Remote control type is also available. Wireless floating ID Technology is adopted and works up to 50M.

5. Emergency Power Supply – in case of discharge battery, Contact 9V Alkaline Battery to the terminal at the front of the lock. This will give you temporary power to access the lock.

Features & Benefits:
• Normal Mode – Without a designated person, anyone who knows “User PIN Code” has authority to set features.
• Master Mode – Only a designated person who knows “Master PIN Code” has authority to set features.
• 3 minute Lock Out Features – after five (5) unsuccessful attempts at entering an invalid code or Cardkey 3minute Lock Out mode will be activated.
• Smart Etiquette – To enter pin codes on the keypad and open the door lock in silent mode.
• Fake PIN Code - To prevent the PIN code from being exposed, it allows you to enter FAKE numbers before or after entering your PIN code.
• Network Module Settings (optional) – This setting becomes available through the main Menu (9) and allows the lock to connect with the controllers.
• Bluetooth Module (optional) – after inserting the Bluetooth module, user could lock and unlock the door by using smart phone.
• Automatic Lock – When the door is set on automatic lock mode, it will be locked automatically within 5 seconds.
• Manual Lock- When the door lock is set on Manual Lock Mode, it should be operated manually, by turning the thumb turn or by pressing the O/C button.
• External Forced Lock Settings – this allows you to de-activate the access of the lock from the outside.
• Break In Alarm – The alarm of 80db will be activated if someone forces to open the door when the door is locked.
• Damage Alarm – The alarm will be activated if IN and/ or OUT side of a door lock is physically damaged by any other forces.
• Battery Life Span -The product use 1.5V Alkaline AA batteries. They may sustain 1 year if used 10x a day
• Low Battery Indicator – the low Battery LED on keypad flickers red.

Specifications:
• Front Body Size : 62(W) x 179.8(H) x 18(D) mm PC/Die-Casting
• Main Body Size : 142.1 (W) 87.1 (H) x 36.4 (D) mm PC/Die –Casting
• Type of Product : Direct current, Temperature Sensor, Not Fire resistant,
• Type of Lock :Deadbolt • Suitable for 35-55mm Door Thickness
