YALE Digital Door Locks

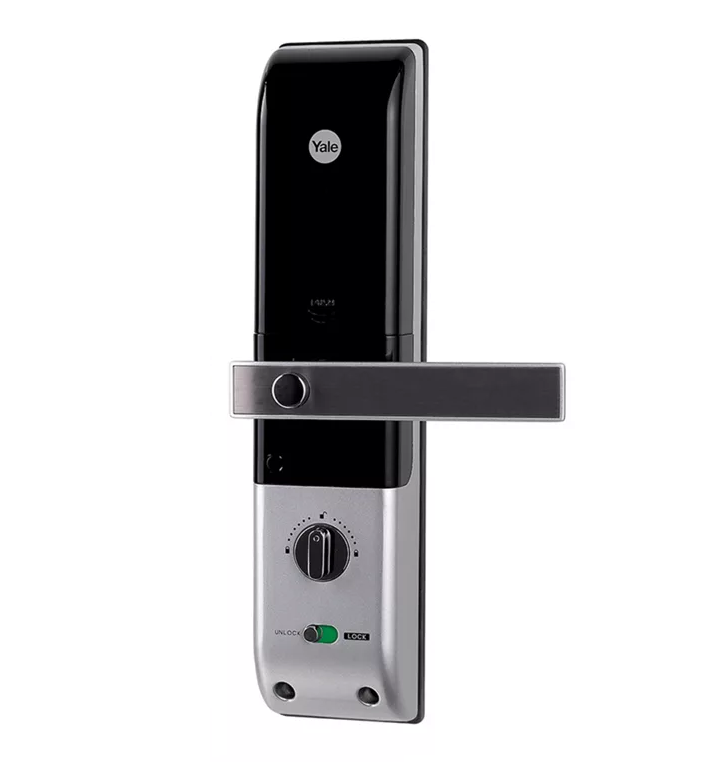

YDM 3109+ Premium Proximity Card Digital Door Lock with anti-panic (Mobile Access Capable via Bluetooth)

The Yale Digital Door Lock Collection Smarter Solution for your home High tech Proximity card Digital Door Lock with strong features

FEATURES & BENEFITS:

• Various Access
1. Card - upto 40 cards can be registered 2.PIN Code - 1 code (4-10 digits)
3.Mechanical Key 2pcs - for emergency, it can also be unlocked with a mechanical key.
4.Bluetooth Mobile Access Capable - Can be opened thru your mobile Bluetooth application. Maximum of 10 meter away
5.Remote with Receiver (OPTIONAL): Remote control type is also available. Wireless floating ID Technology is adopted and works up to 50M.

• Fake PIN Code
You can make an instant PIN code for security.

• Operation Status Notification
Whenever any operation is made, the keypad informs you what has happened through different alignment of the numbers.

• Mechanical Key Override
For emergency, it can also be unlocked with a mechanical key.

• Automatic Locking
The Yale Digital Door Lock series automatically locks the door after checking if it is properly closed. Manual operation is also available.

• Anti-panic Egress with Safe Handle
For convenience and in case of emergency, the door is automatically unlocked whenever the inner lever handle is used and also safe handle will protect from any break-in attempts.

• Alarm (Break-in/Damage)
80dB alarm goes off if anyone attempts to damage the lock or force the door open.

• Low Battery and Emergency Power
It warns in case of low battery with alarm and LED. When the batteries are completely discharge, you can easily supply emergency power to the lock with the standard 9V battery.

Technical details:
• Mortise Lock Type
• Color: Silver
• Outside trim dimension : 27mm X 68.6mm X 306.6mm (w/o lever)
• Thickness : Suitable for 40-80mm thick wooden doors
• Backset : 60mm
